High-Temperature External Heating Type Rotary Kiln

Division for this product Plant Engineering and Machinery Division

  • Contact us about this product
  • Print

Summary

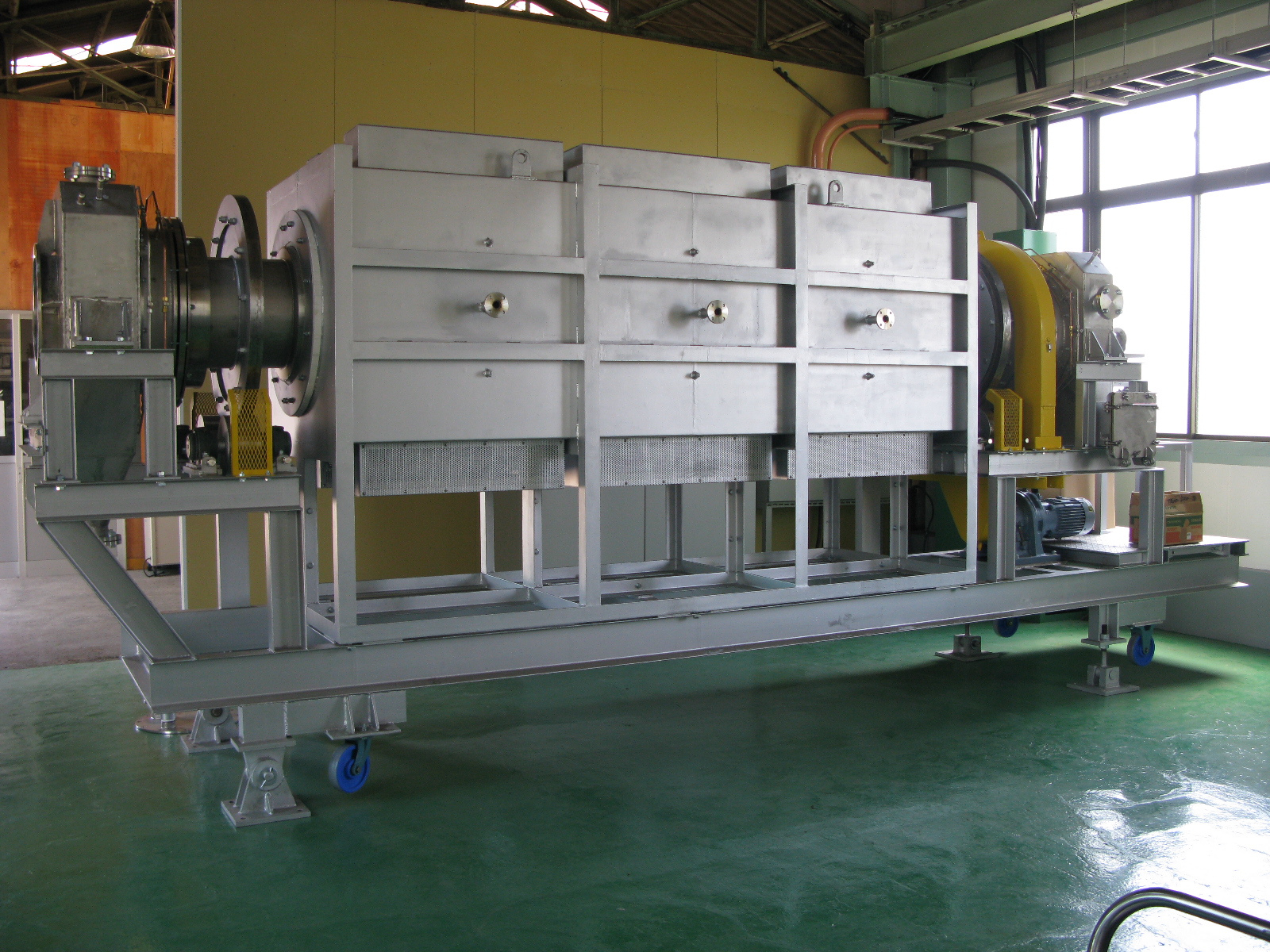

This machine is an indirect heating type of rotary kiln using ceramics for the retort material. Introducing the ceramic retort enables continuous heat treatment at a high temperature (approximately 1500ºC) for nonmetallic materials to produce stable and high quality products.


Features

  • High-temperature, continuous treatment enabled
  • Easy replacement of ceramic retort according to objects
  • Scraper mountable
  • Severe atmosphere and temperature control (sealing performance to a maximum of±500Pa)
  • Easy maintenance
  • Compact installation area required

Specifications

TypeCapacity
(kg/Hr)
Number of retortsElectric furnace capacity
(kW)
Total length L
(mm)
Total width W
(mm)
Total height H
(mm)
IRK-100 7 1 50 4800 1200 2650
IRK-200 14 2 100 4800 1800 2650
IRK-300 21 3 150 4800 2400 2650
IRK-400 28 4 200 4800 3000 2650
IRK-500 35 5 250 4800 3600 2650
