Batch Type High-speed Planetary Mill Kurimoto High G

Division for this product Plant Engineering and Machinery Division

  • Contact us about this product
  • Print

Summary

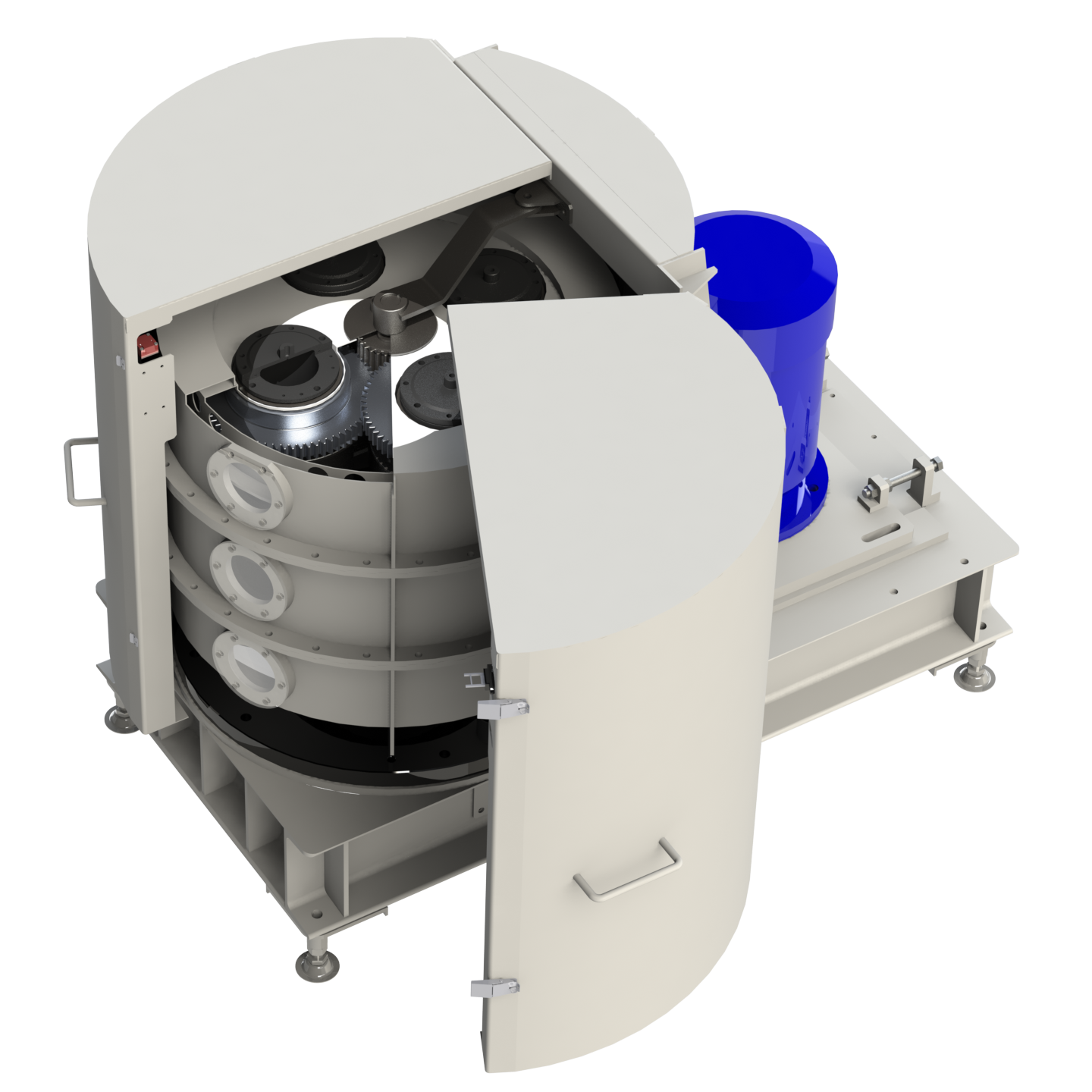

The Kurimoto High G consists of a main unit which revolves and mill pots which rotate in the same and opposite directions. You should put grinding medium (usually small-diameter balls) and material in the rotating mill pot to move the balls applying centrifugal force generated during revolution and rotation for processing (i.e., grinding).
The name, "Planetary Mill", is derived from the mill pot's revolution and rotation like the sun-and-planet motion.




Features

  • Only one reversible mill available in the world (Source: Our survey)
  • Powders are processed with large energy from small-diameter balls.
  • Significantly shortened processing time (up to 1/10 of that with conventional mills).
  • Low vibration and low noise
  • Can be upsized. (We can see large-sized mills becoming operational.)
  • Motion of balls determined through the analysis of computer simulation



Use

  • Mechano-chemical reaction
  • Mechanical alloying (MA)
    This is a production method of new materials only with which several kinds of mixed element powders are alloyed only by milling them.
  • Dry- and wet-process grinding
  • Dispersion
  • Particle compounding, and others

Features

Construction

Specifications

TypeBX254EBX254E-S/RBX284E-HBX384EBX1144E
Mill
pot
0.17liters×4pots 0.2liters×4pots 0.2liters×4pots 2.4liters×4pots 64liters×4pots
Heating
temperature
---- ---- Ambient up to 300℃ ---- ----
Hot ai
generation unit
---- ----

By heater, 10kW,
200V, 3 phase,
variable speed

---- ----
Motor

1.5kW, 200V,
3 phase,
variable speed

3.7kW, 200V,
3 phase,
variable speed

3.7kW, 200V,
3 phase,
variable speed

11kW, 200V,
3 phase,
variable speed

200kW, 200V,
3 phase,
variable speed

Dimensions 800L×
700W×
1000H
1300L×
740W×
915H
1300L×
1600W×
1100H
1400L×
900W×
1300H
----
Weight 400kg 500kg 550kg 500kg 12000kg
Rotating/
Revolving direction
Same direction Same and opposite directions Same direction Same direction Same direction
