Jaw Crusher
Division for this product Materials and Machinery Division
Outline
|
Robust, highly reliable crusher for primary crushing! Commonly used for primary crushing of large blocks of raw stone. |
Features
Wear resistance Jaw plate made of robust materials of high wear resistance in a rational profile Crushing Deep crushing chamber facilitates biting of large blocks and deliver a large crushing capacity. Frame structure Robust frame structure made of thick steel plate Outlet clearance adjustment with hydraulic jack Easy-to-handle outlet clearance adjustment system using a hydraulic jack Roller bearing and grease lubrication system Bearing structure with combined use of roller bearings of sufficient capacity and a highly reliable grease lubrication system |
Applications
NC series Jaw Crusher
Double-toggle crusher designed particularly to crush a large amount of robust raw stone. Offers outstanding durability.
ST series Jaw Crusher
Commonly used as primary crushers for stone owing to high reliability and a simple, robust structure.
Details
Specifications

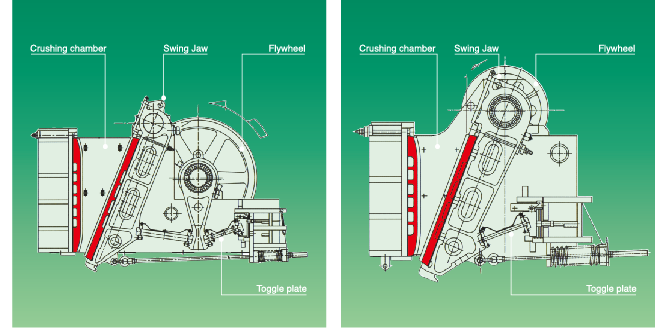

Structural Diagram
| NC series Jaw Crusher | ST series Jaw Crusher |
|
|
|
Performance
(Medium-hard rock, Apparent specific gravity)
Capacity Table
Performance (Medium-hard rock with apparent specific gravity of 1.6)
|
MODEL |
FEEDING INLET |
CRUSHING CAPACITY (t/h) | |||||||||||
| EXIT CLEARANCE (mm)(opening) | ROTATIONAL SPEED |
ELECTRIC MOTOR |
|||||||||||
| 40 | 60 | 80 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | (min-1) | (kW) | ||
|
2415NC 3020NC 3624NC |
620×380 780×500 930×600 |
33
|
46 80 100 |
56 98 125 |
113 148 |
125 168 |
181 |
250 250 225 |
30 45 75 |
||||
|
4032NC 4842NC |
1,030×800 1,240×1,050 |
159
|
190
|
224 303 |
254 350 |
275 386 |
294 420 |
467 |
200 190 |
95 130 |
|||
|
6042NC 6048NC 7254NC |
1,540×1,050 1,540×1,200 1,850×1,350 |
378 378
|
438 439 502 |
482 490 568 |
525 535 623 |
583 606 713 |
645 782 |
190 170 150 |
170 190 220 |
||||
|
8460NC 10072NC |
2,150×1,500 2,550 1,800 |
534
|
600
|
663
|
767 990 |
853 1,090 |
125 100 |
260 360 |
|||||
Performance (Medium-hard rock with apparent specific gravity of 1.6)
|
MODEL |
FEEDING INLET |
CRUSHING CAPACITY (t/h) | |||||||||||
| EXIT CLEARANCE (mm)(opening) | ROTATIONAL SPEED |
ELECTRIC MOTOR |
|||||||||||
| 40 | 60 | 80 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | (min-1) | (kW) | ||
|
2415ST 3018ST |
625×380 770×460 |
25
|
39 40 |
47 60 |
84 |
275 250 |
30 45 |
||||||
|
3624ST 4230ST |
924×750 1,080×750 |
92
|
118 157 |
138 185 |
159 217 |
175 244 |
264 |
|
250 250 |
75 95 |
|||
|
4830ST 4842ST |
1,240×750 1,240×1,050 |
177
|
210
|
245 284 |
276 329 |
296 363 |
398 |
443 |
|
250 225 |
130 130 |
||
|
6048ST |
1,540×1,200 |
349 |
408 |
457 |
500 |
567 |
613 |
200 |
190 |
||||
|
7254ST 8460ST |
1,850×1,200 2,150×1,500 |
477 525 |
542 595 |
603 660 |
697 765 |
767 850 |
180 165 |
220 260 |
|||||
